Device Map

The Device Map module lets you add location data to devices, view them on a world map, and quickly open related actions (metrics, containers, storage, alarms) directly from the map.

info

Cameras on the map will be described in the related section.
Here we focus only on devices.

Adding Location to a Device​

To set a location for a device:

  1. Go to the Devices page.
  2. In the device row, click the ellipsis ( … ) under the Actions column.
  3. Select Set Location.
  4. In the Location Type field, choose the 3D model/icon to represent the device.
  5. In Device Type, choose:
    • Fixed — for stationary devices
    • Sensor — for mobile devices. Make sure a sensor has already been added (see the Sensors section).
  6. In Select Location, choose the position:
    • Use the search icon (magnifier) to find a location by entering address, place, or coordinates.
    • Or, zoom/drag the map and click to drop a pin.
    • Use the Home icon to reset the map view.
    • Switch between 2D / 3D with the icons at the top.
  7. Click Save Location.

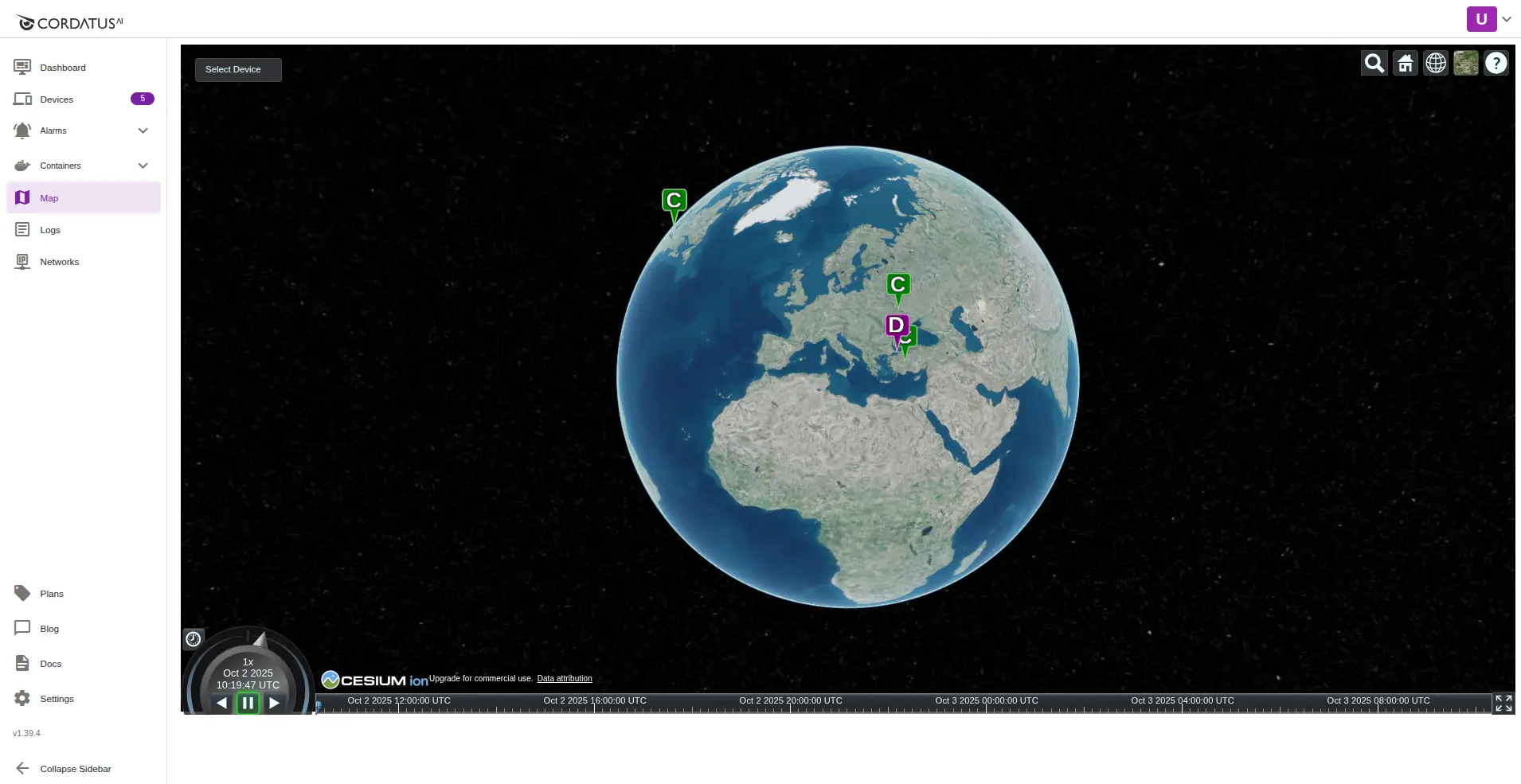

Viewing Devices on the Map​

  1. From the left menu, open the Map page.
  2. All your devices will appear on the map, marked with the letter D.
  3. Use the top-right controls:
    • Search — type an address, landmark, or coordinates
    • Zoom in/out — with the mouse wheel
    • Home — reset to world view
    • 2D/3D and style — toggle map modes

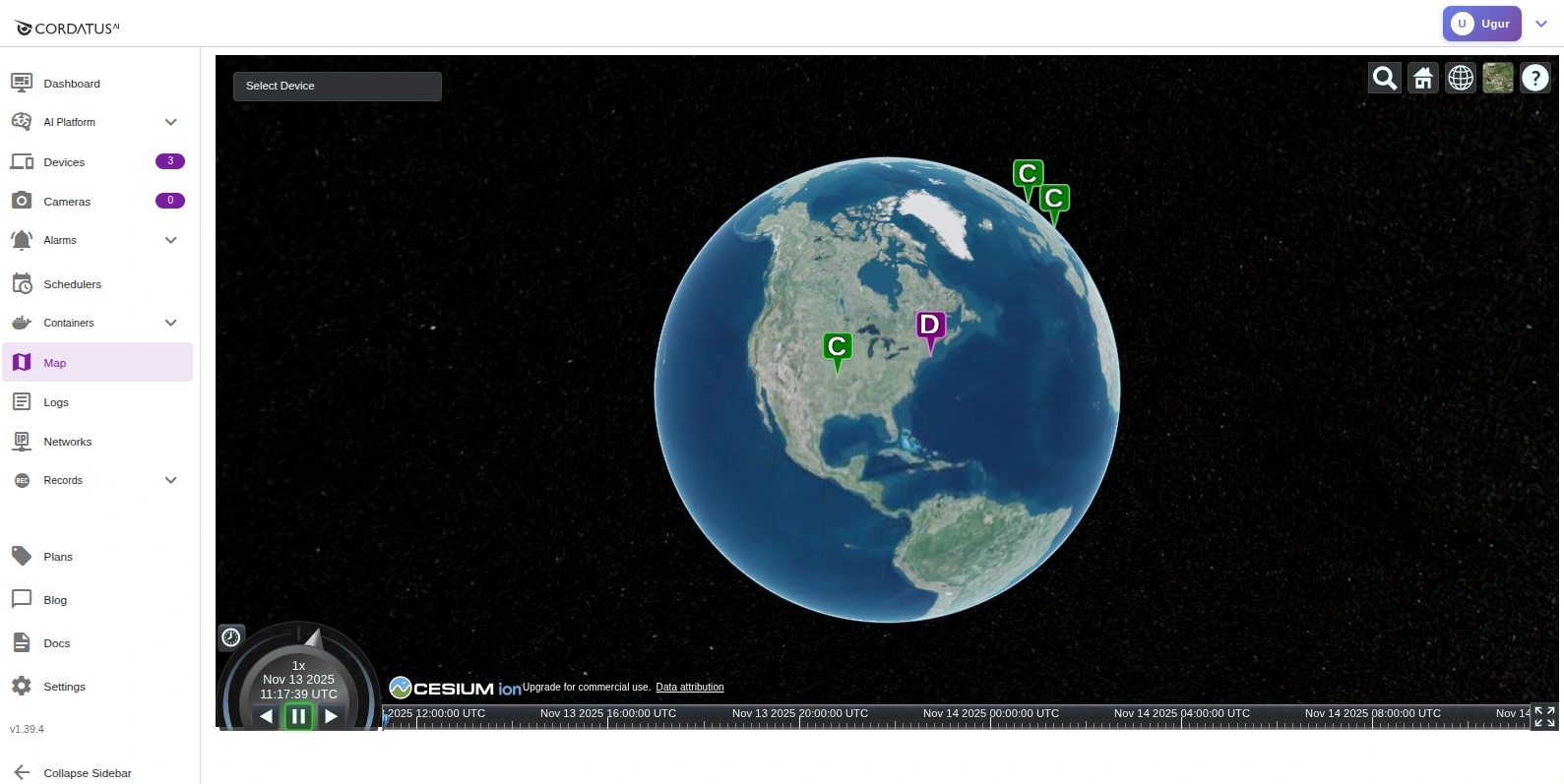

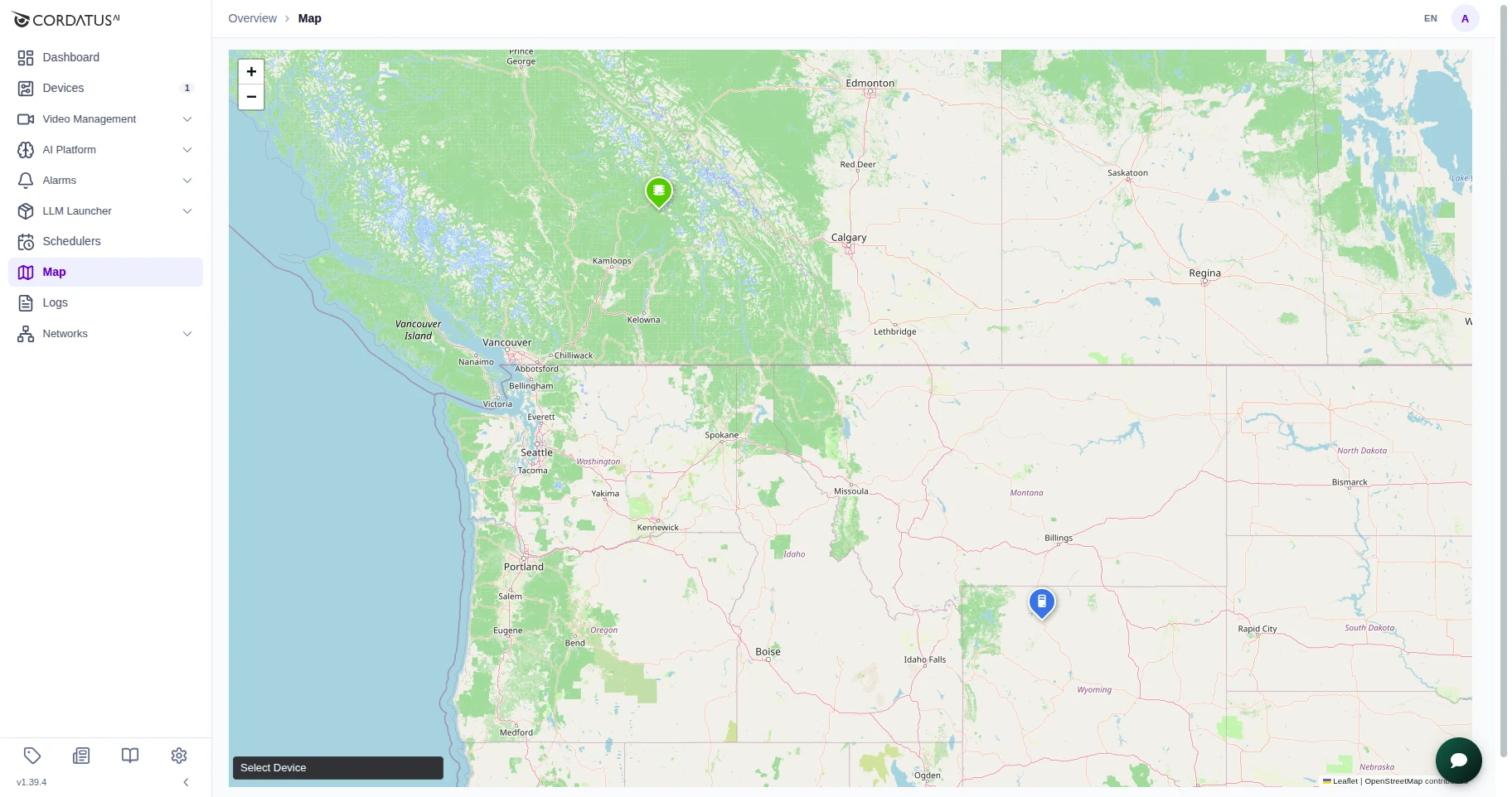

Map View

Map View



Open Device Actions from the Map​

When you click a device icon on the map, a device card opens with shortcuts:

  • Show Metrics → open Realtime / Historical metrics
  • Show Containers → list running containers
  • Show Storage Info → view disk partitions and Cordatus system folders
  • Show Device Alarms → enable, disable, or check alarms for this device
  • Show Jobs (if licensed) → view and manage device jobs
  • Show Sensors → see connected sensors
  • Show Cameras → (if licensed) → view and manage cameras



warning

The device must be Connected in Device Hub to be visible on the map.

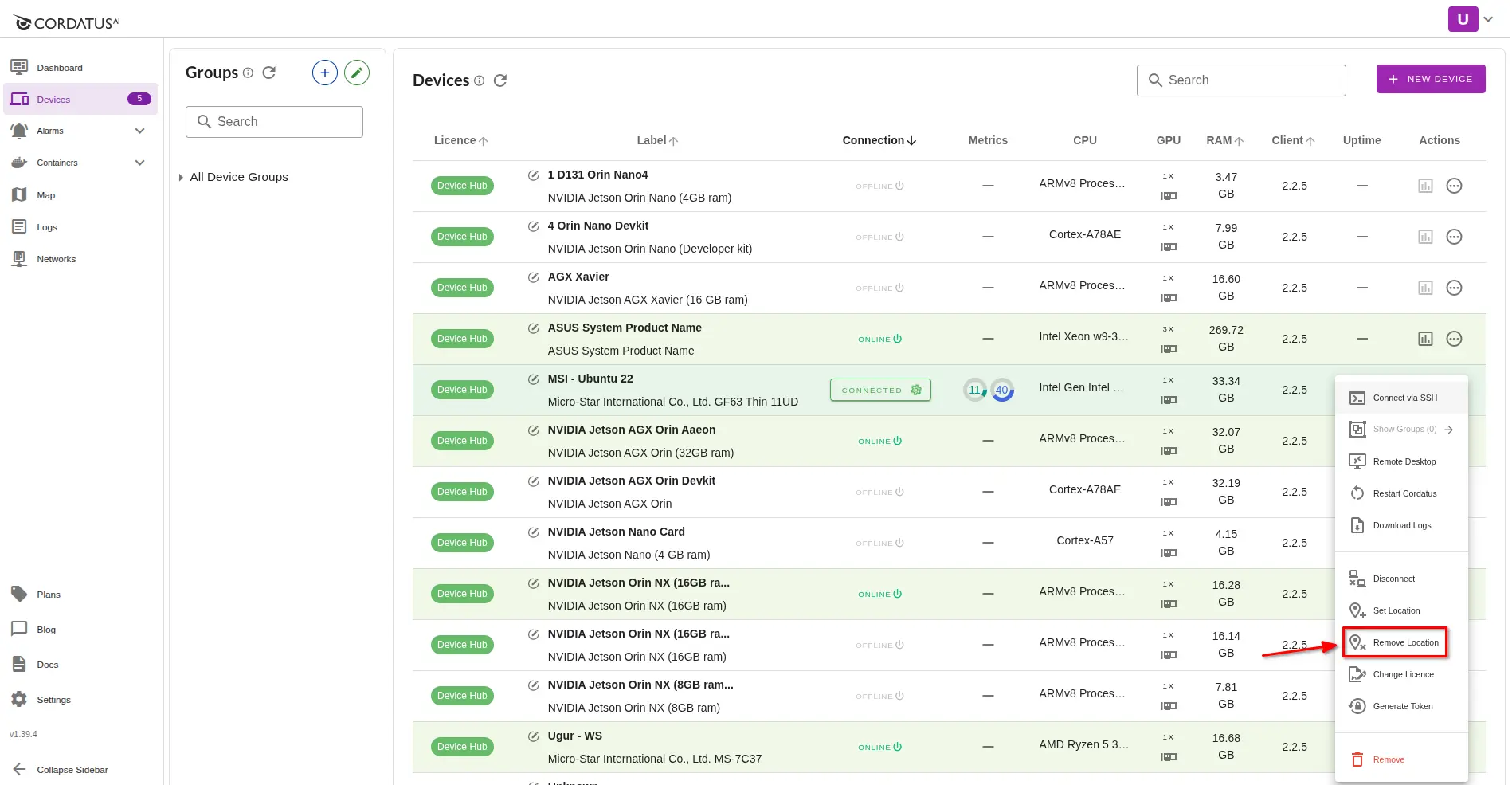

Removing a Device Location​

To remove a device’s saved location:

  1. Go to the Devices page.
  2. In the device row, click the ellipsis ( … ).
  3. Choose Remove Location.

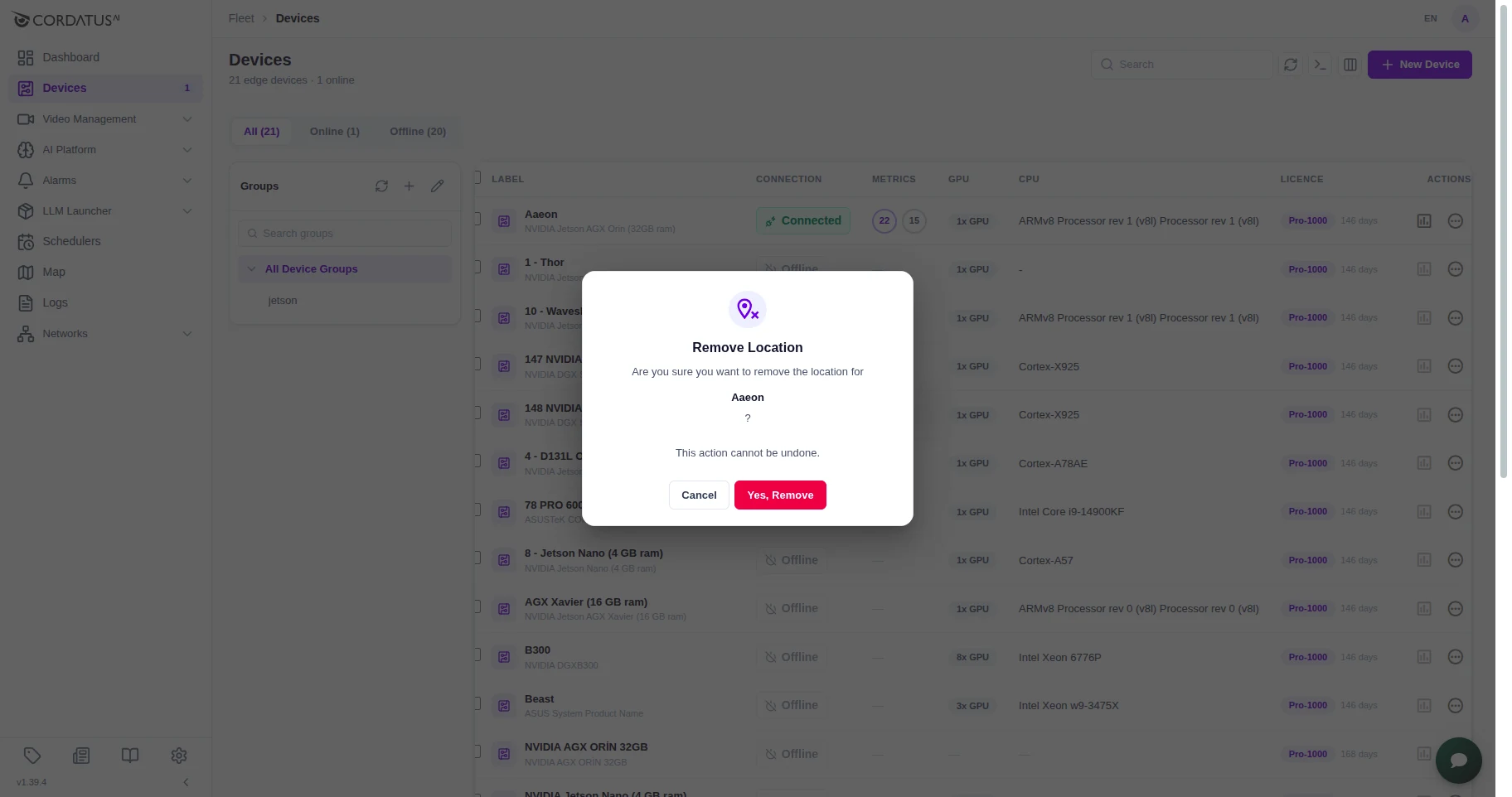

  4. In the confirmation dialog, confirm by clicking Yes, Delete.

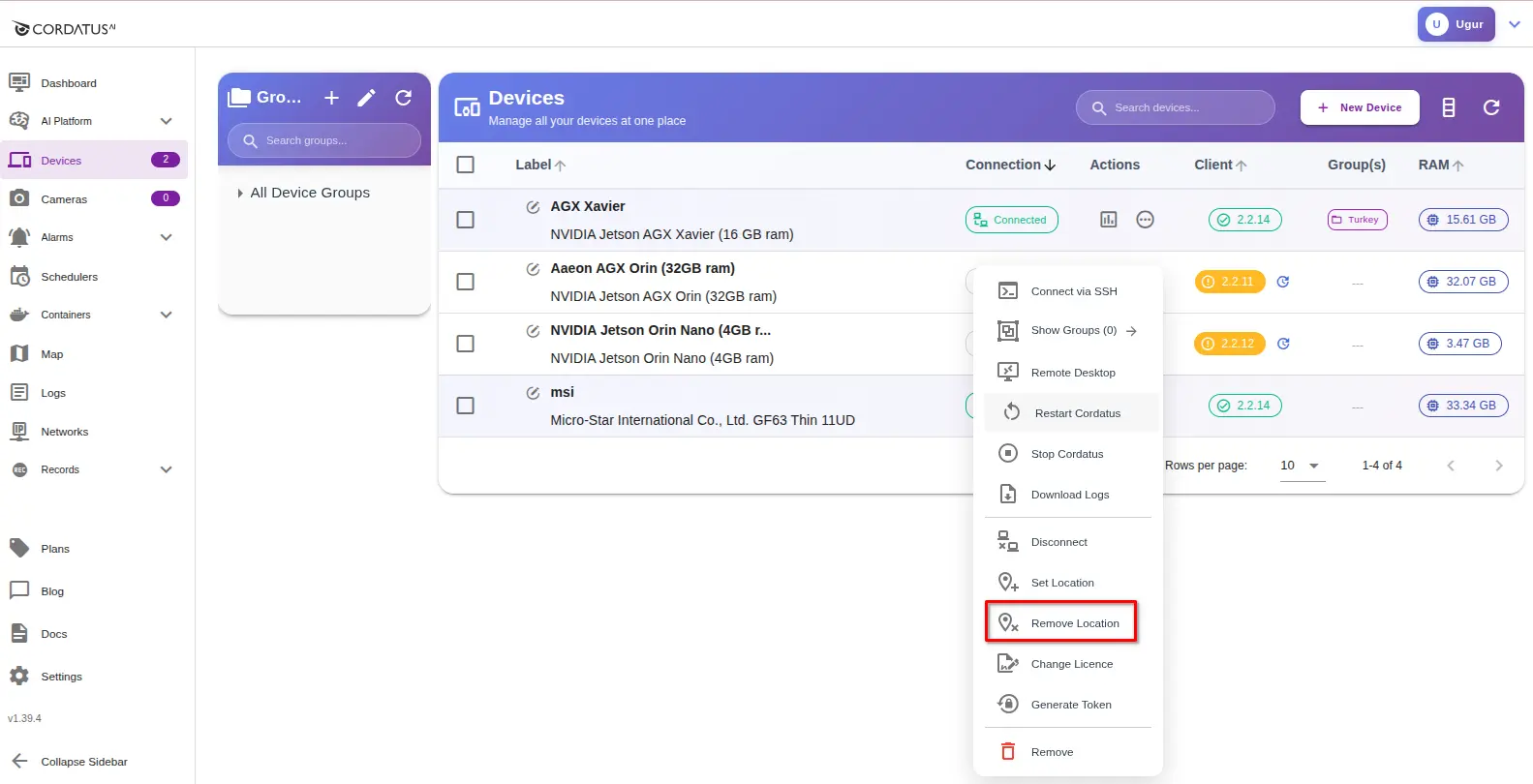

Remove Location

Removing Location Data



FAQ​

I can’t see my device on the map.

  • Make sure the device has a saved location.
  • Check that the device is Connected in Device Hub.

Notes​

  • Location data belongs to the device. If you remove the device, location will also be deleted depending on your settings.
